C-Band Gain-Flattened Fiber ASE Broadband Source Module20-30mW

The C-band gain-flattened fiber ASE broadband light source module adds gain-flattening technology to the ordinary broadband light source and optimizes the light source structure. The output spectrum flatness reaches 2dB, and it has high output power and compact size.

Product features：Adjustable power、 Spectrum flatness, flatness < 2dB、 Highly stable output power

Application area：Fiber optic sensing、 Medical imaging、 Fiber optic device testing、 Production testing

Unit Price

Please contact customer service for a discounted quote.

Part Number

ASE-C-20-SA-M

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Main Parameters:

Optical indicators	Unit	Typ		Note
Spectral range	nm	1528~ 1563		2dB spectral range
Output optical power	mW	10/20/50/100/200/400
Power adjustment range (optional function)	-	10%~ 100%		Spectral flatness maintenance
Spectral flatness	dB	2		*400mW model flatness 3d B
Output isolation	dB	>35
Short-term stability (15 minutes)	dB	≤ ±0.02		Equivalent ≤±0.5%
Long-term stability (8 hours)	dB	≤ ±0.05		Equivalent≤± 1.2%
Polarization PER	dB	≤ 0.2	≥23
Pigtail and connector type	-	SMF-28	PM1550	FC/APC

Electrical and environmental parameters	Benchtop	Module
Control mode	Buttons	RS232 serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240V AC, <30W	5V DC,<15W
Dimensions	260(W) ×280(D) ×120(H)mm	125(W) ×150(D) ×20( H)mm
Operating temperature range	-5~+35 °C
Operating humidity range	0~70%

Ordering Information
ASE	Spectral range	Output power (mW)	*Adjustable power (optional)	Output pigtail type	Packaging
	C	10/20/50/100/20 0/400	*T	SM= SMF-28 PM=PM1550	B= Benchtop M=Module

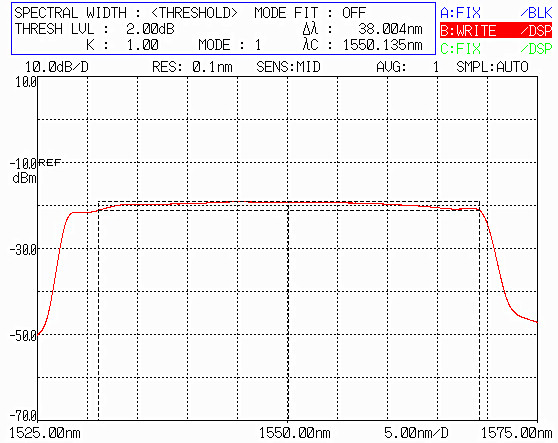

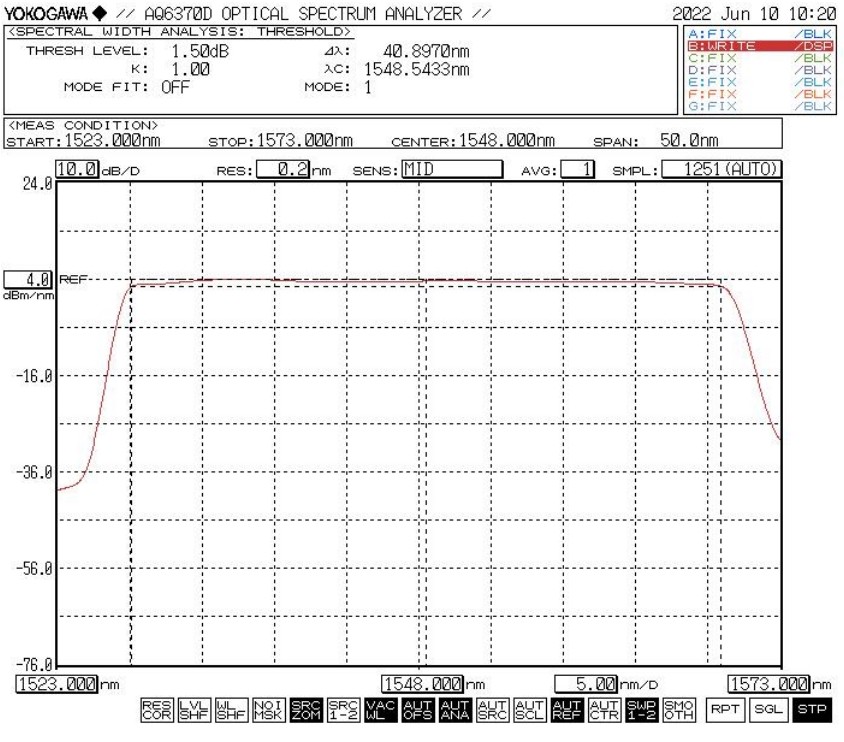

C-Band ASE Broadband Source Spectrum (100mW)

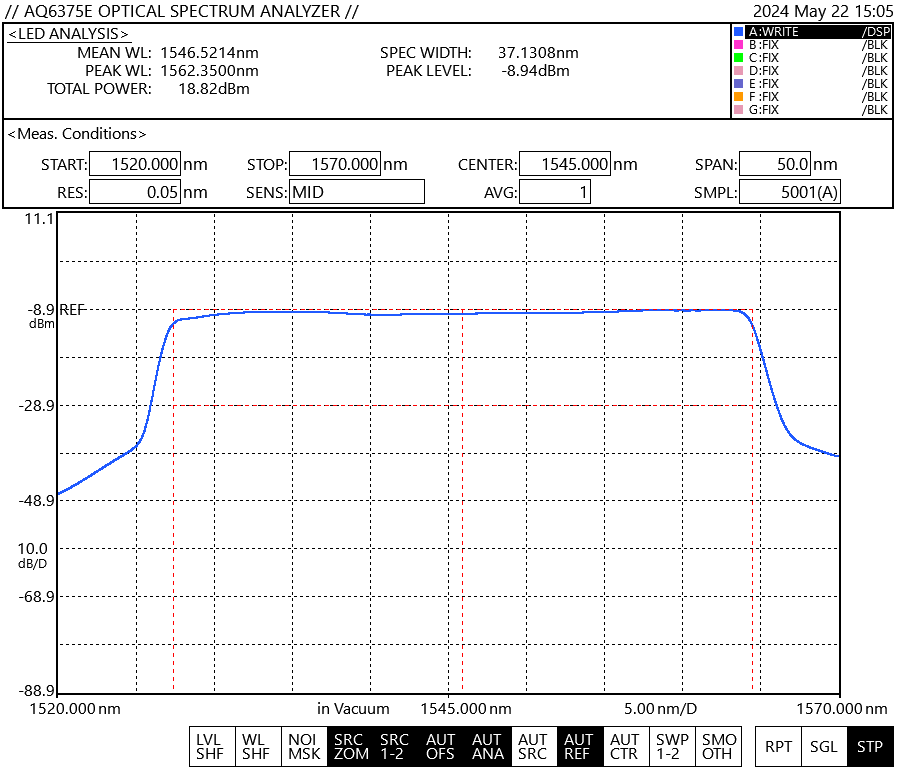

C-Band ASE Broadband Source Spectrum (500mW)
