1060nm ASE broadband light source 10mW

The 1060nm band ASE broadband light source is based on ytterbium-doped fiber and semiconductor pump laser, with a spectrum covering 1030~1080nm, and can also be extended to 1010nm and 1100nm bands, with high output power and good flatness. It can be used for fiber device testing, FBG grating production, etc.

Product features：Spectral flatness、 Adjustable power、 Highly stable output power

Application area：Fiber optic sensing、 Medical imaging、 Fiber optic device testing

Unit Price

Please contact customer service for a discounted quote.

Part Number

ASE-1060-10-SM-B

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Unit	Typical	Notes
Spectral range	nm	1010、1030~1080、1015	50nm@10dB
Output optical power	mW	10/20/30/50/100
Power adjustment range (optional function)	dB	10%~100%	Spectral flatness remains unchanged during adjustment
Spectral flatness	dB	10
Output isolation	dB	>35
Short-term stability (15 minutes)	dB	≤ ±0.02	Equivalence≤±0.5%
Long-term stability (8 hours)	dB	≤ ±0.05	Equivalence≤±1.2%
Polarization degree DOP	dB	≤ 0.2
Pigtail type	-	Hi 1060 SM fiber/PM980 PM fiber
Pigtail connector type	-	FC/APC

Electrical and environmental parameters	Benchtop	Module
Control mode	Button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240VAC, <30W	5V DC, <15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%

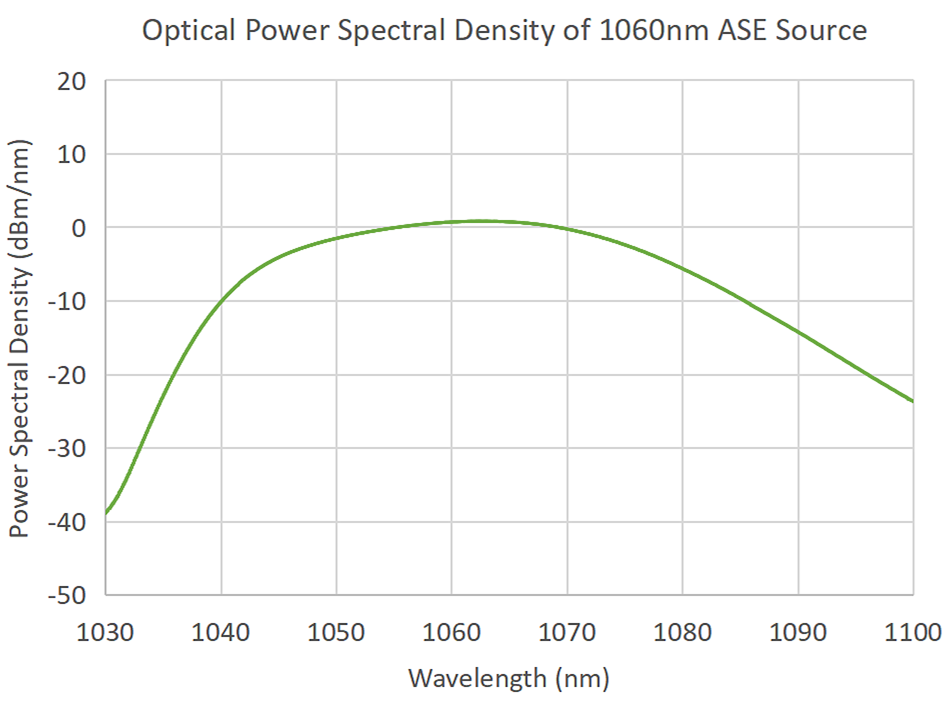

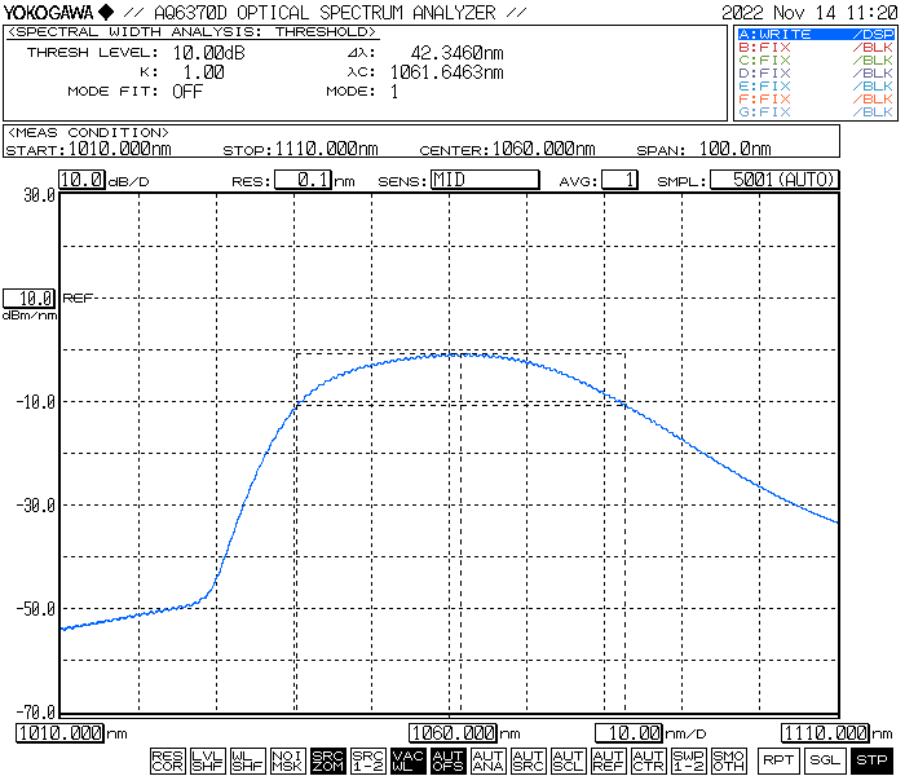

Spectrum

Ordering info

Ordering information / PN#
ASE	Spectrum range	Output power(W)	*Power adjustable (optional)	Output pigtail type	Package method
	1010/1060/1150	10/20/30/50/100	*T	SM=single mode fiber	B=Benchtop
				PM=Polarization-mode fiber	M=Module
