InGaAs ultra-low noise balance detector UBD-1G-A

The UBD series ultra-low noise balanced detection module is an upgraded product based on the original MBD series. Compared with the original MBD series, its background noise is significantly reduced under the same other parameters. Under the same bandwidth and gain conditions, its background noise is about one-third of the MBD series module, so it has higher sensitivity and higher signal-to-noise ratio.

Product features：Ultra-low noise、 High gain、 High bandwidth、 Compact structure、 Built-in low-noise isolated power supply

Application area：Distributed fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement、 Level optical pulse detection

Unit Price

Please contact customer service for a discounted quote.

Part Number

UBD-1G-A

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

PN#

UBD-100M-A

UBD-200M-A

UBD-300M-A

UBD-400M-A

UBD-500M-A

UBD-800M-A

UBD-1G-A

UBD-1.2G-A

UBD-1.5G-A

UBD-2G-A

UBD-2.5G-A

Unit

Detector type

InGaAs

Wavelength

800~1700

Bandwidth

100M

200M

300M

400M

500M

800M

1.2G

1.5G

2.5G

Detector responsivity

0.95

A/W@1550nm

Transimpedance gain

30K

20K

10K

30K

V/W

Maximum input optical power

140

210

420

140

μW

NEP

2.5

2.9

3.1

pW/Sqrt(Hz)

Common mode rejection ratio

>30

Output impedance

Output coupling mode

DC/AC

Supply voltage

Supply current

0.5(max)

Optical input

FC/APC（Free space optional）

RF output

SMA

Dimensions

80*90*25

Test results:

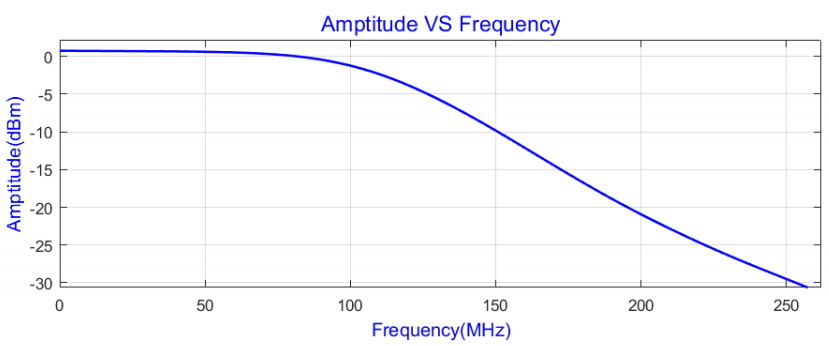

300MHz bandwidth corresponding curve

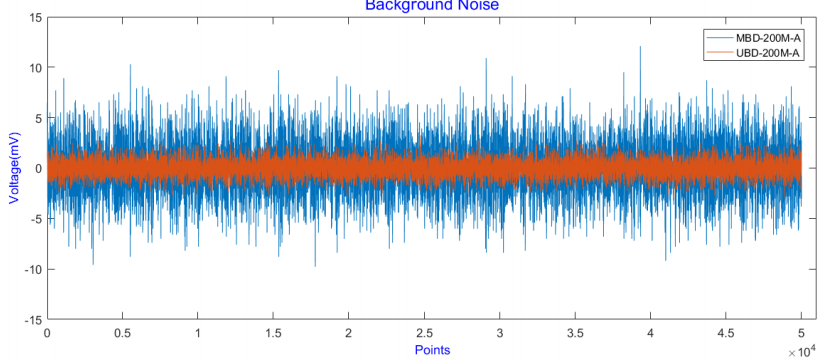

Comparison of noise floor between ultra-low noise balanced detector and conventional balanced detector
