1539.4nm Narrow Bandwidth Fiber Bragg Grating (FBG) Filter (Bandwidth < 0.05nm, reflectivity up to 90%, polarization-maintaining optional)

This narrow bandwidth bandpass filter from IdealPhotonics is based on our advanced Fiber Bragg Grating (FBG) technology. The narrow bandwidth bandpass filter can selectively transmit light signals with a small bandwidth while blocking all other wavelengths. This filter is designed for applications such as fiber laser ASE noise suppression, LiDAR filters, high-resolution Raman spectroscopy, fluorescence microscopy, and optical instruments.

Product features：Ultra-narrow bandwidth、 All-fiber structure、 Wavelength selectable、 Wide stopband width、 Different fiber types available

Application area：Fiber laser noise filtering、 Lidar spectral noise filtering、 High-resolution Raman spectroscopy analysis、 Fluorescence imaging

Unit Price

Please contact customer service for a discounted quote.

Part Number

NBFBG-1539.4-004-99-01-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Technical Parameters

Model:	NBFBG-1539.4-004-99-01-SA		Date:	28/09/2022
Name:	Fiber Bragg Grating
S/N:	5604-1		Temperature:	23°C
Optical Specifications		Requirement	Measurement	Unit
Center Wavelength @ 3 dB		1539.4291±0.02	1539.42	nm
Isolation		N.A.	34.38	dB
Bandwidth @ 0.5dB		N.A.	0.03	nm
Bandwidth @ 3.0dB		<0.05	0.04	nm
Bandwidth @ 25.0dB		N.A.	0.09	nm
Reflectance		>99.9	100.0	%
Thermal Stability		N.A.	N.A.	pm/°C
Fiber Type		SMF28e+	SMF28e+
Adsorptive Coating		N.A.	N.A.
Connector		FC/APC	FC/APC

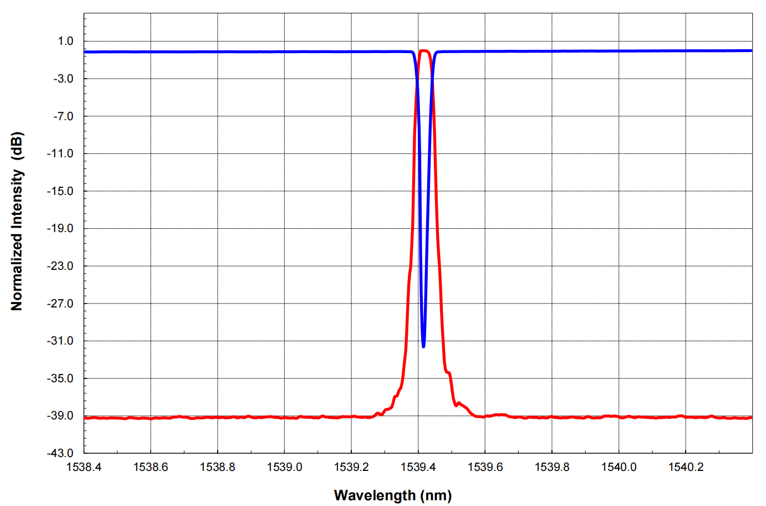

Transmission spectrum

General Parameters

Ordering Info

NBFBG- □□□□-☆-☆☆-A8▽- XX

□□□□: Wavelength

532: 532nm

1064: 1064nm

1550: 1550nm

*****

1950: 1950nm

☆ : bandwidth

004: 0.04nm

008: 0.08nm

☆☆：Reﬂectivity 01:1%

10:10% 90:90%

▽: Wavelength Tolerance

01: ±0.1nm

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

SN=SMF-28E+ None

PA=PM1550 Fiber+ FC/APC

PP=PM1550 Fiber+ FC/PC

PN=PM1550 Fiber+ None
