InGaAs Ultra-Low Noise Balanced Detector UBD-300M-A

The UBD series ultra-low noise balanced detection modules are upgraded products based on the previous MBD series. Compared to the original MBD series, the background noise is significantly reduced under the same conditions. With the same bandwidth and gain, the background noise of the UBD series is approximately one-third of that of the MBD series modules, resulting in higher sensitivity and better signal-to-noise ratio.

Product features：Ultra-low noise、 High Gain、 High bandwidth、 Compact structure、 Built-in low-noise isolation power supply

Application area：Distributed fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement、 Pulsed light detection

Unit Price

Please contact customer service for a discounted quote.

Part Number

UBD-300M-A

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

PN#

UBD-100M-A

UBD-200M-A

UBD-300M-A

UBD-400M-A

UBD-500M-A

UBD-800M-A

UBD-1G-A

UBD-1.2G-A

UBD-1.5G-A

UBD-2G-A

UBD-2.5G-A

Unit

Detector type

InGaAs

Wavelength

800~1700

Bandwidth

100M

200M

300M

400M

500M

800M

1.2G

1.5G

2.5G

Detector responsivity

0.95

A/W@1550nm

Transimpedance gain

30K

20K

10K

30K

V/W

Maximum input optical power

140

210

420

140

μW

NEP

2.5

2.9

3.1

pW/Sqrt(Hz)

Common mode rejection ratio

>30

Output impedance

Output coupling mode

DC/AC

Supply voltage

Supply current

0.5(max)

Optical input

FC/APC（Free space optional）

RF output

SMA

Dimensions

80*90*25

Test result

300 MHz bandwidth response curve

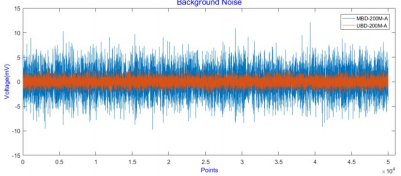

Comparison of the baseline noise between ultra-low noise balanced detectors and conventional balanced detectors
