Ultra-low noise polarization diversity coherent receiver module UPDR-300M-A
Ultra-low noise polarization diversity coherent receiver module UPDR-300M-A

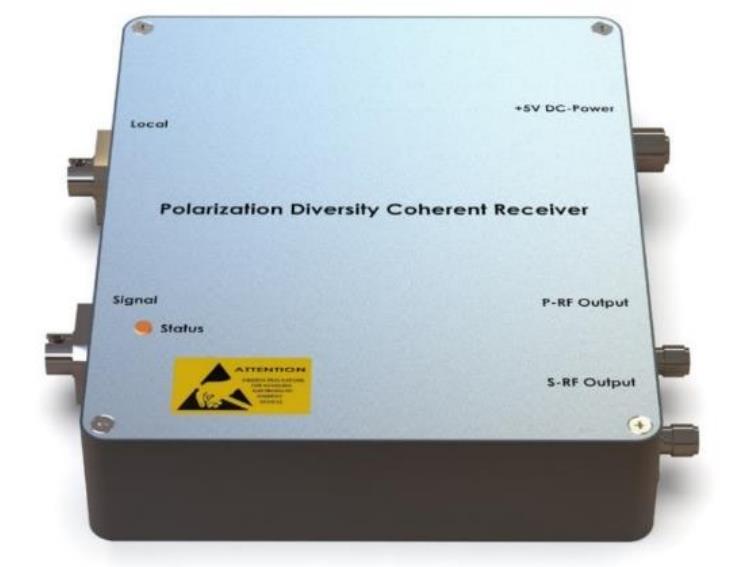

The ultra-low noise polarization diversity receiver module is designed for polarization-sensitive optical fiber sensing applications. This polarization diversity receiver module coherently detects the two polarization states of the local oscillator and signal light separately, using two high-speed low-noise balanced detectors for individual reception. It effectively solves the issue of coherent polarization states. This series is an upgrade based on the original PDR series, significantly reducing the background noise, thereby achieving higher signal-to-noise ratio for detection.
Product features：High bandwidth、 High gain、 Ultra-low noise、 Built-in low-noise isolation power supply
Application area：Fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement
Unit Price
Please contact customer service for a discounted quote.
Part Number
UPDR-300M-A
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Download Document
Dimensional Drawing

General Parameters

PN#

UPDR-  100M-A

UPDR-  200M-A

UPDR-  300M-A

UPDR-  400M-A

UPDR-  500M-A

UPDR-  800M-A

UPDR- 1G-A

UPDR- 1.2G-A

UPDR- 1.5G-A

UPDR- 2G-A

UPDR- 2.5G-A

Unit

Wavelength

1510~1590（1300±50nm；1060±50nm  optional）

nm

Bandwidth

100M

200M

300M

400M

500M

800M

1G

1.2G

1.5G

2G

2.5G

Hz

Detector Responsivity

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

A/W@1550nm

Transimpedance Gain

30K

30K

30K

20K

10K

30K

30K

30K

30K

30K

30K

V/A

Input Light

Local

<5

<5

<5

<5

<5

<5

<5

<5

<5

<5

<5

mW

Signal

300

300

300

300

300

300

300

300

300

300

300

μW

Polarization Extinction Ratio

22

22

22

22

22

22

22

22

22

22

22

dB

NEP

2.5

2.5

2.5

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

pW/Sqrt(Hz)

Supply Voltage

5

5

5

12

12

12

12

12

12

12

12

V

Supply Current

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

0.5(max)

A

Coupling Method

DC/AC

DC/AC

DC/AC

DC/AC

DC

AC

AC

AC

AC

AC

AC


Interface Type

Electrical Interface: SMA, Optical Interface: FC/APC


Fiber Type

Local:PM；Signal:SM


RF Output

SMA


Dimensions

120*100*25mm

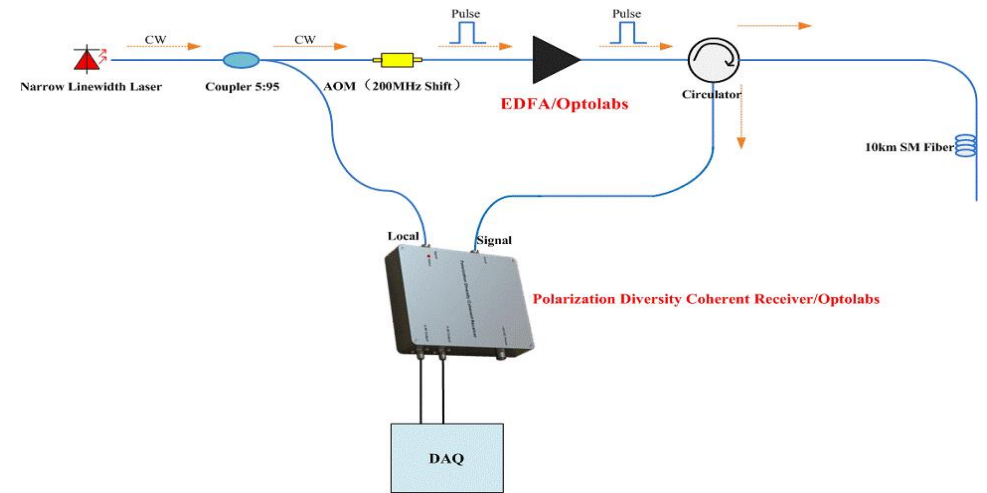

Polarization Diversity Coherent Reception Optical Circuit Diagram

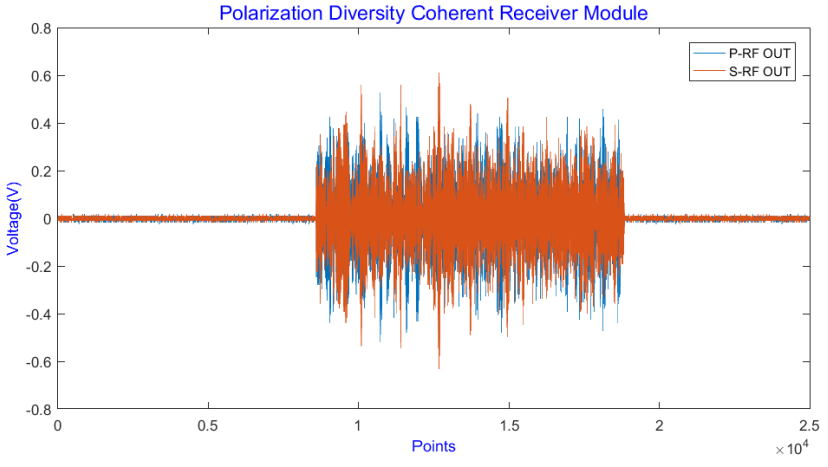

Coherent signal of P-polarized and S-polarized states

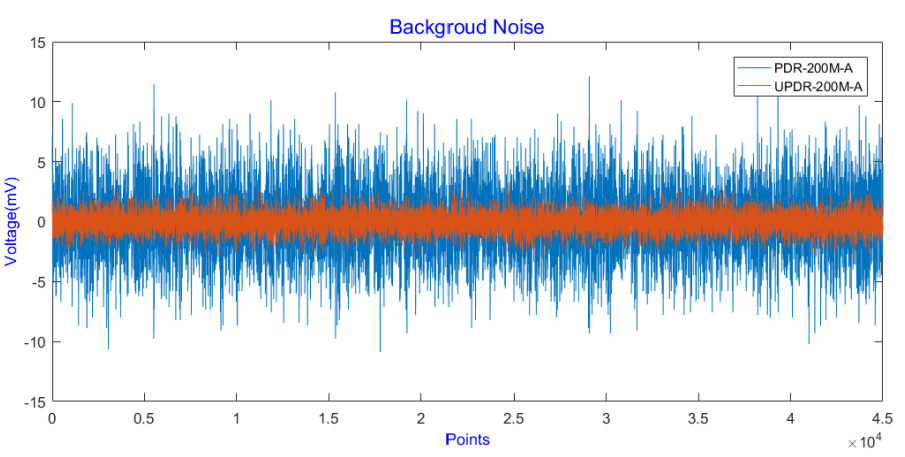

Comparison of the background noise between ultra-low noise polarization diversity and conventional polarization diversity.
