1550nm 1X10 Single- Mode Fiber Coupler Module

Idealphotonics' 1550nm single-mode fiber coupler module uses a single-mode fiber that is tapered multiple times, which effectively reduces the insertion loss of our module.

Product features：Low accessory loss 、 High operating power

Application area：Fiber Amplifier、 Power monitoring、 Coherent Communications、 Fiber Gyroscope

Unit Price

Please contact customer service for a discounted quote.

Part Number

MSC-1550-110-FA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

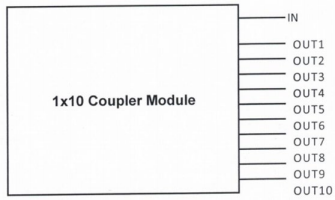

Dimensional Drawing

Parameters

parameters	Indication
Operating wavelength	1550±20nm
Input port	Output port	Input loss（dB)
IN	OUT1	10.5
	OUT2	10.55
	OUT3	10.51
	OUT4	10.62
	OUT5	10.72
	OUT6	10.37
	OUT7	10.73
	OUT8	10.5
	OUT9	10.71
	OUT10	10.48
Polarization-dependent loss (PDL)	≤0.2dB
Return loss	≥45dB
Directivity	≥50dB
Fiber length	100±10cm
Fiber type	Corning SMF-28
Connector type	FC/APC
Dimensions	100X80X10mm
Operating temperature	-40-85℃
