InGaAs weak light coherent reception module 800-1700nm DC-350M

IdealPhotonics has developed a high-speed, low-noise analog coherent receiving module for optical coherent detection applications. This SVDC power coherent receiver module integrates a high-speed, low-noise analog optoelectronic balanced detector and a high-quality fiber coupler. During the manufacturing process, the splitter ratio and length of the coupler are strictly controlled to further enhance the common-mode rejection ratio. Building on the coherent reception, to further improve the optical signal-to-noise ratio (SNR), the high SNR coherent receiving module integrates a low-noise small-signal fiber amplifier to amplify weak backscattered light signals. This module is suitable for fiber optic sensing, lidar, wind measurement radar, and other fields.

Product features：High bandwidth、 High gain、 Low noise、 Built-in low-noise isolation power supply

Application area：Fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement

Unit Price

Please contact customer service for a discounted quote.

Part Number

CRM-350M-A

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Technical Parameters

PN#		CRM-100M-A	CRM-200M-A	CRM-350M-A	CRM-800M-A	CRM-1.6G-A	Unit
Wavelength		800~1700	800~1700	800~1700	800~1700	800~1700	nm
Bandwidth		DC-100M	DC-200M	DC-350M	AC-800M	AC-1.6G	HZ
Detector Responsivity		0.95@1550nm	0.95@1550nm	0.95@1550nm	0.95@1550nm	0.95@1550nm	A/W
Transimpedance Gain		30k(60k)	30k(60k)	30k	30k	30k	V/A
Optical Input	Local	＜5	＜5	＜5	＜5	＜5	mW
Optical Input	Signal	200	300	300	300	300	uW
Power Supply Voltage		5	5	5	12	12	V
Power Supply Current		0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	A
Fiber Type		SMF-28(PM optional）
Optical Input		FC/APC
RF Output		SMA
Dimensions		808030mm

Related test data

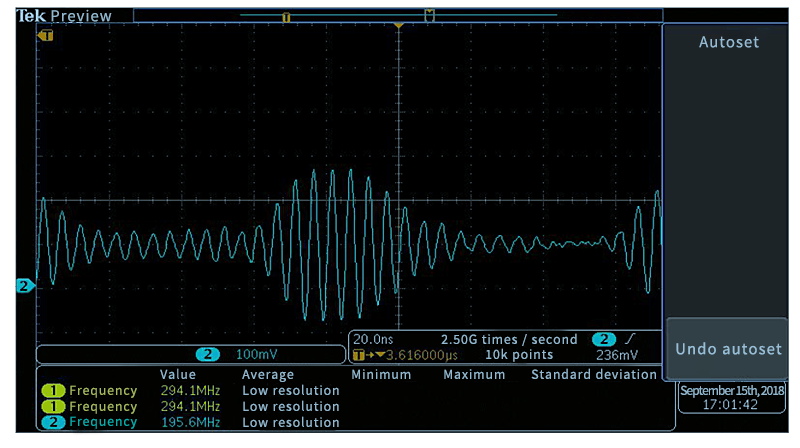

200MHz beat frequency signal (oscilloscope data)

Typical application areas

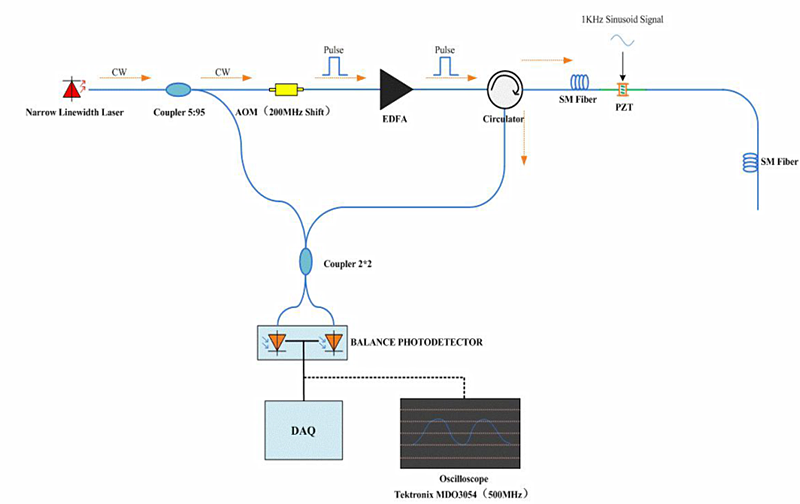

Coherent detection distributed optical fiber sensing

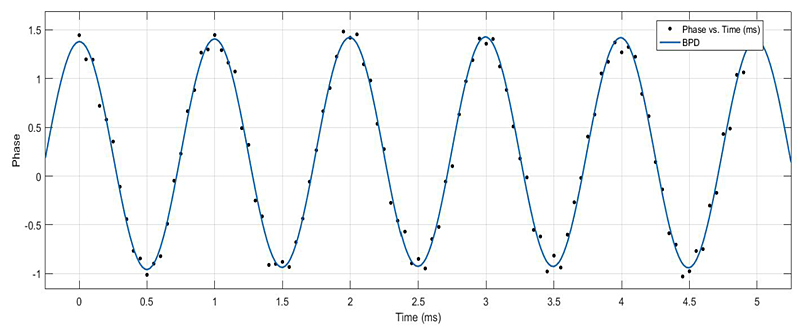

PZT vibration point phase demodulation on optical fiber (1KHz)
