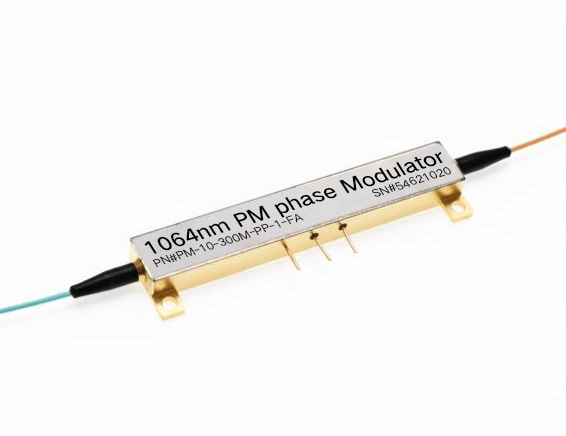

1064nm Lithium Niobate Phase Modulator

The 1064nm 300MHz Lithium Niobate Electro-Optic Phase Modulator uses proton exchange technology to fabricate the optical waveguide. It features a total electrode design and precise oblique coupling of input/output optical fibers with the waveguide. The modulator utilizes the electro-optic effect of lithium niobate material to perform phase modulation on the optical signal passing through the waveguide.

Product features：Bandwidth up to 300MHz、 Operating range: 950nm to 1150nm、 Low insertion loss, typically 4dB、 Minimal back reflection、 Polarization-maintaining fiber input and output

Application area：Coherent communications 、 Optical chirp 、 Optical sensing 、 FM spectroscopy 、 Frequency shift 、 Laser linewidth broadening

Unit Price

Please contact customer service for a discounted quote.

Part Number

PM-10-300M-PP-1-FA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Main Parameters

（Electrical/Optical Characteristics at Tsub = 25°C, continuous wave bias unless otherwise specified)

Parameter		Value
Model		PM-10-300M-PP-1-FA/FU
Optical	Operating Wavelength	950-1150nm
	Insertion Loss	<4dB
	Return Loss	≥45dB
	Polarization Extinction Ratio	≥20dB
	Additional Intensity Modulation	≤0.3%
	Max. Input Optical Power	100mw
Electrical	Operating Frequency	DC~300MHz
	Half-Wave Voltage @ 50kHz	≤3V
	Max. Applied Voltage	+15V
Mechanical	Connector	3 PIN
	Fiber Type	PM980
	Fiber Length	1m or customizable
	Connector Type	FC/APC Or FC/UPC
	Axis Alignment	Slow Axis Alignment
Environmental	Operating Temperature	-10~ +65°C
Environmental	Storage Temperature	-45~ +85°C
