400X400μm Homogenized Fiber Optic Connector

Homogenized fiber has unique spot homogenization and scrambling properties. When Gaussian-distributed laser is input, it can obtain a flat-top spot with uniform energy distribution after passing through square/rectangular/octagonal fiber. At the same time, the coupling efficiency is also higher than that of circular fiber. It is an ideal fiber for precision laser processing (welding, cutting, marking), astronomical observation, night vision monitoring, laser biological detection and other application fields. This product link is the related model of homogenized bare optical fiber + connector jumper.

Product features：Uniform energy distribution and high damage threshold、 Large core energy fiber

Application area：Optical application experiments、 Laser transmission

Unit Price

Please contact customer service for a discounted quote.

Part Number

08138-REVA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

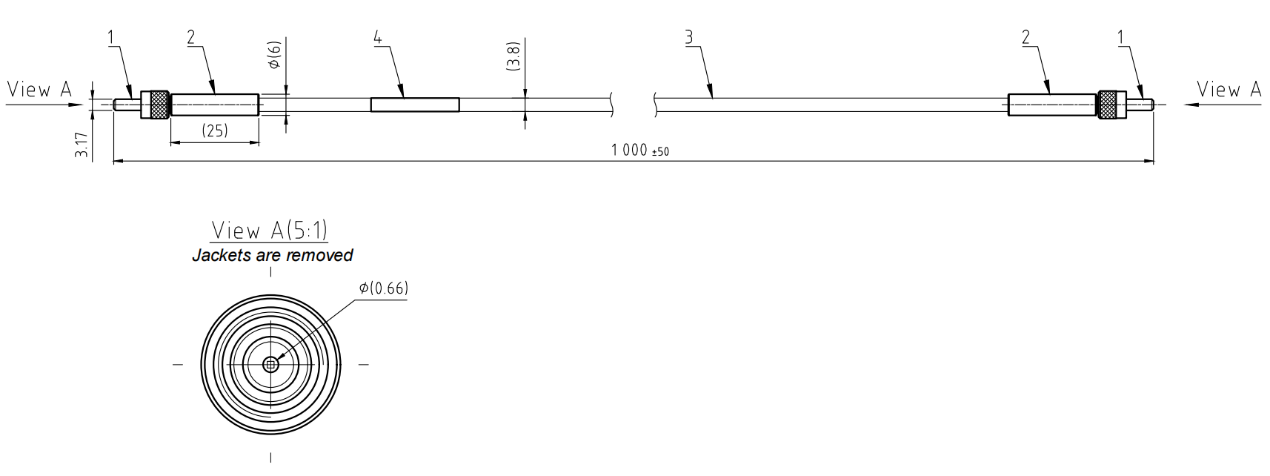

Dimensional Drawing

Model parameters

Notes:

1. This component uses 1 Fiber optic cables.

2. All ends will be polished to 0.3µm Specification.

3.Size applies when legs are straight.

4.Glue: Master Bond Supreme HT11 (to +200 ° C) / Analog.

5.Min. Turning radius (short term): 33 mm; min. end. Radius (long term): 99 Millimeters.

Fiber Specifications:

OPTRAN®

WF 400x400/660/780/1100 N (R=10 … 20%)

Pure fused silica core: 400x400µm ± 2% Fluorine doped fused silica cladding: 660µm ± 2% Sheath 1 diameter: 780µm ± 3%.

Sheath 2 Diameter: 1100µm ± 5%.

NA:0.22 ± 0.02


Technical Parameters

parameter	index
Fiber Type	WU375*375um ,310X310um , 600X600um
length	L≤1m tolerance: ±10mm 1m＜L≤3m tolerance: ± 15mm 3m＜ L≤5m Tolerance:± 30mm 5m＜L tolerance : ±30mm
Connector Type	SMA/FC-SMA/FC/SMA905

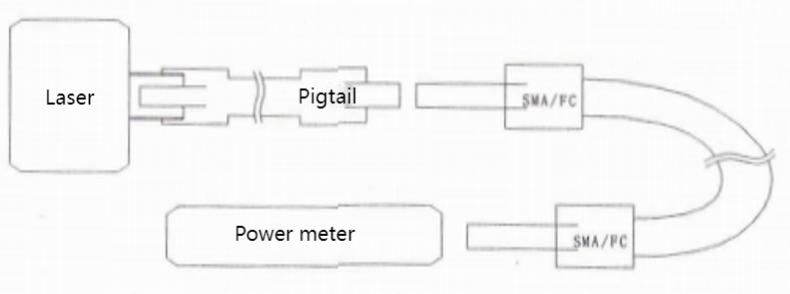

Test diagram
