Polarization diversity coherent reception module (InGaAs balanced photodetector 1510-1590nm, bandwidth 2.5GHz)
Polarization diversity coherent reception module (InGaAs balanced photodetector 1510-1590nm, bandwidth 2.5GHz)
The IdealPhotonics PDR series polarization diversity reception module is designed for polarization-sensitive fiber optic sensing applications. This polarization diversity reception module coherently detects the two polarization states of the local oscillator and signal light separately, using two high-speed, low-noise balanced detectors for independent reception. It effectively solves the issue of coherent polarization states and is suitable for applications in distributed fiber optic sensing, laser wind radar, optical coherence tomography, and other related fields.
Product features：High bandwidth、 High Gain、 Low Noise、 Built-in low-noise isolation power supply
Application area：Optical fiber sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement
Unit Price
Please contact customer service for a discounted quote.
Part Number
PDR-2.5G-A
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Download Document
Dimensional Drawing

General Parameters

PN#

PDR-

100M-A

PDR-

200M-A

PDR-

300M-A

PDR-

400M-A

PDR-

500M-A

PDR-

800M-A

PDR- 1G-A

PDR-   1.2G-A

PDR-   1.5G-A

PDR- 2G-A

PDR-   2.5G-A

Unit

Wavelength

1510~1590（1300±40nm；1060±40nm Optional）

nm

Bandwidth

100M

200M

350M

400M

500M

800M

1G

1.2G

1.5G

2G

2.5G

Hz

Detector Responsivity

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

A/W@1550nm

Transimpedance Gain

30K

30K

30K

10K

5K

30K

30K

30K

30K

15K

15K

V/A

Input Light

Local

<5

<5

<5

<5

<5

<5

<5

<5

<5

<5

<5

mW

Signal

300

300

300

300

300

300

300

300

300

300

300

μW

Polarization Extinction Ratio

22

22

22

22

22

22

22

22

22

22

22

dB

NEP

5

5

5

7

7

9

9

9

9

9

9

pW/Sqrt(Hz)

Supply Voltage

5

5

5

5

5

12

12

12

12

12

12

V

Supply Current

0.4(max)

0.4(max)

0.4(max)

0.4(max)

0.4(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

A

Output Coupling Method

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC


Interface Type

Electrical Interface：SMA

Fiber Interface：FC/APC


Fiber Type

Local: PM ; Signal: SM


RF Output

SMA


Dimensions

120*100*25mm（Optional 90*80*20mm）





Testing:

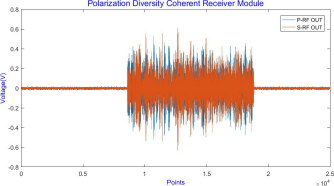

Coherent signals of P polarization state and S polarization state.

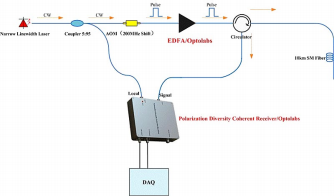

 Polarization diversity coherent reception optical circuit diagram.
