532nm Polarization Maintaining Beam Splitter

Our fused-fiber polarization beam combiners/splitters are used to couple two orthogonally polarized beams into a single fiber, or to split a single input beam into two orthogonal linearly polarized output beams. These devices operate entirely with fiber; polarization states are combined or separated at a fused-fiber junction. This all-fiber construction can achieve higher transmission rates and withstand higher powers than calcite prism-based polarization beam combiners. Since the polarization-maintaining fiber in a fused fiber polarizing beam combiner does not act as a polarizer, the input light must be linearly polarized and aligned with the fast and/or slow axis of the fiber. These devices are ideal for coupling light from two pump lasers into a single fiber to enhance the input light of an Erbium-doped or Raman fiber amplifier.

Product features：Low insertion loss 、 High extinction ratio 、 High stability and reliability

Application area：Fiber optic sensing 、 Ultrashort pulse laser 、 Laser communications

Unit Price

Please contact customer service for a discounted quote.

Part Number

PBS-532-9-1-PA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

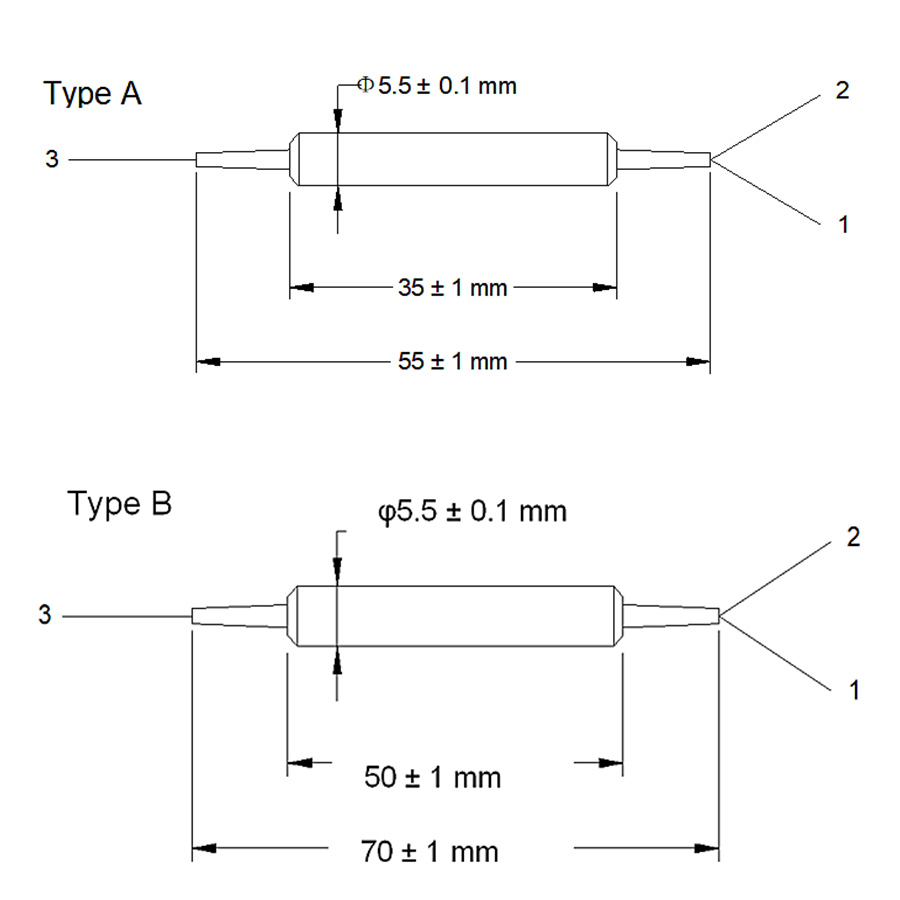

Dimensional Drawing

Specifications

Parameters	Unit	Value
Center Wavelength	nm	532
Operating Wavelength Range	nm	±10
Max. Insertion loss	dB	2
Min. Return Loss	dB	50
Typ. Extinction Ratio	dB	23
Min. Extinction Ratio	dB	21
Max. Optical Power (CW)	mW	100
Max. Tensile Load	N	5
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85

*Above specifications are for devices without the connectors.

*For devices with connectors, IL will be 1.5dB higher, RL will be 5dB lower, and ER will be 2dB lower.

*The PM fiber and the connector key are aligned to the slow axis.

*The material must be RoHS compliant

Ordering Information

PBC-①①-②-③-④-⑤/PBS-①①-②-③-④-⑤

①①: Wavelength	532 - 532 nm,1064 - 1064 nm, 1310 - 1310 nm, 1550 - 1550nm, SS - Specify
②: Jacket Type	B - Bare fiber, 9- 900 μm loose tube, 3- 3 mm Cable, S - Specify
③:Fiber Length	1 - 1.0 m, S - Specify
④: Fiber Type	S - SM，P - PM
⑤: Connector Type	P- FC/PC, A- FC/APC, N - None, S-Specify
