InGaAs Gain Adjustable Balanced photo Detector 800-1700nm DC 100MHz

Idealphotonics independently developed the best programmable gain photoelectric balanced detector on the market. The detector can adjust the gain quickly and conveniently through software. The gain adjustment range is up to 31dB, and the Max. gain is up to 60KV/A. During the gain adjustment process, the adjustment speed is fast, the noise is low, and the output signal-to-noise ratio and signal bandwidth are not affected. It is especially suitable for scientific research and equipment integration.

Product features：Gain adjustable (software adjustment)、 Large gain adjustment range (0~31dB)、 No signal-to-noise ratio degradation、 High gain (60KV/A)、 Low noise, high bandwidth、 Easy to operate

Application area：Distributed fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement、 ns-level optical pulse detection

Unit Price

Please contact customer service for a discounted quote.

Part Number

ABD-100M-A

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

PN#	ABD-100M-A	ABD-200M-A	ABD-350M-A	ABD-800M-A	ABD-1.6G-A	Unit
Wavelength	800~1700	800~1700	800~1700	800~1700	800~1700	nm
bandwidth	DC-100M	DC-200M	DC-350M	AC-800M	AC-1.6G	HZ
Detector responsivity	0.95@1550nm	0.95@1550nm	0.95@1550nm	0.95@1550nm	0.95@1550nm	A/W
Gain adjustment range	0~31	0~31	0~31	0~31	0~31	dB
Gain adjustment step	1	1	1	1	1	dB
Transimpedance gain	30k	30k	30k	30k	30k	V/A
Saturated input optical power	100	150	150	150	150	μW
NEP	5	5	5	9	9	pW/Sqrt(Hz)
Output impedance	50	50	50	50	50	Ω
Output coupling mode	AC	AC	AC	AC	AC
Supply voltage	5	5	5	12	12	V
Supply current	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	A
Optical input	FC/APC	FC/APC	FC/APC	FC/APC	FC/APC
RF output	SMA	SMA	SMA	SMA	SMA
Dimensions	808030	808030	808030	808030	808030	mm

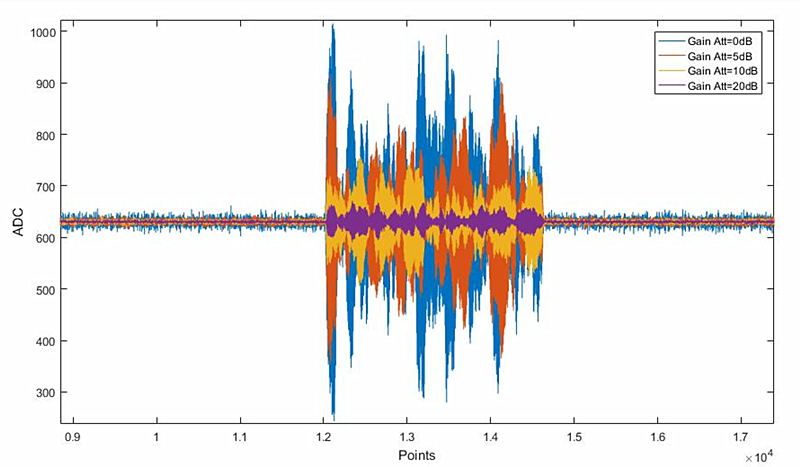

Related test data

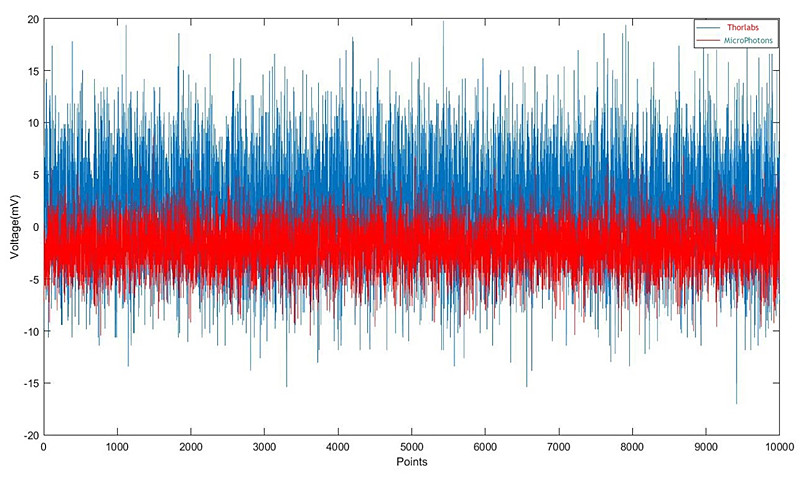

Noise floor benchmarking test with foreign Thorlabs products


Noise floor 10mVpp

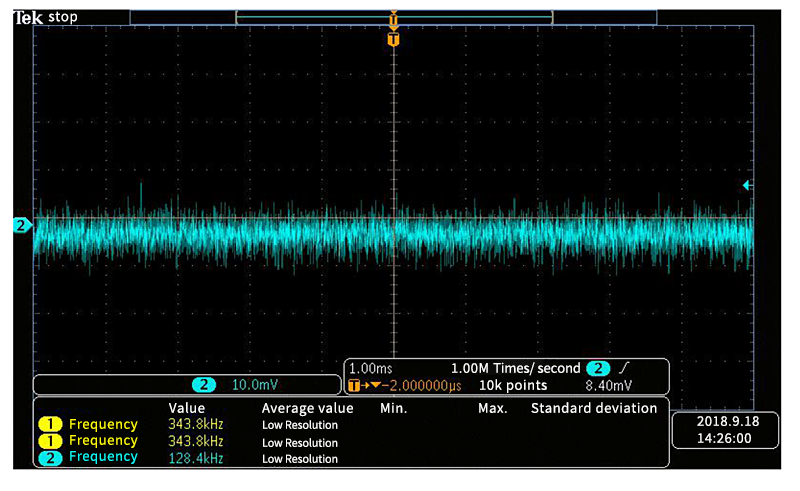

200MHz beat frequency signal (oscilloscope data)

Typical application

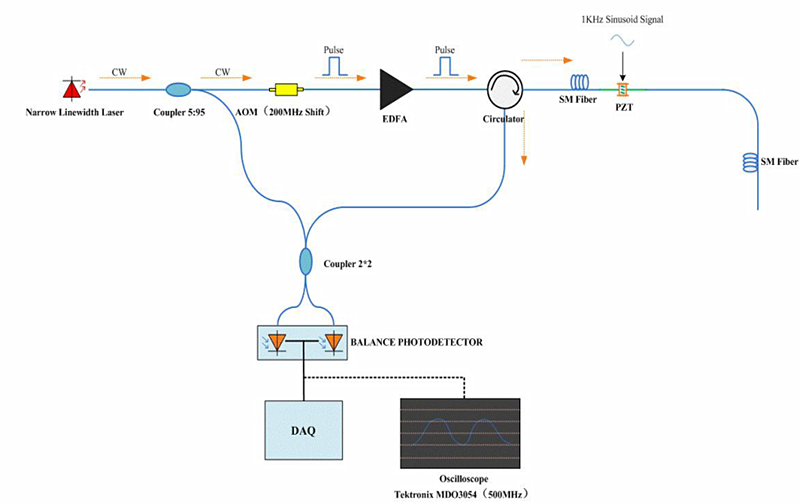

Coherent Detection Distributed Fiber Optic Sensing

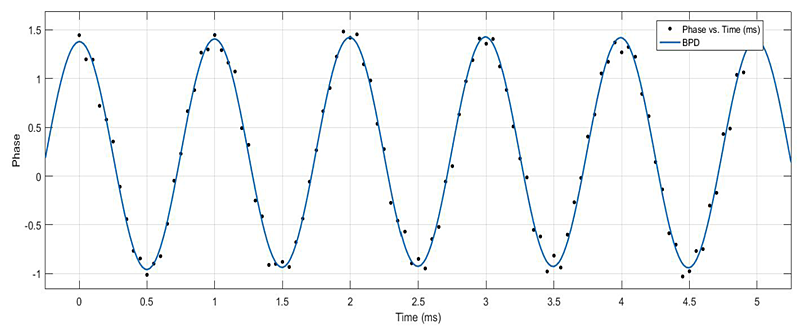

PZT vibration point demodulation phase on optical fiber (1KHz)
