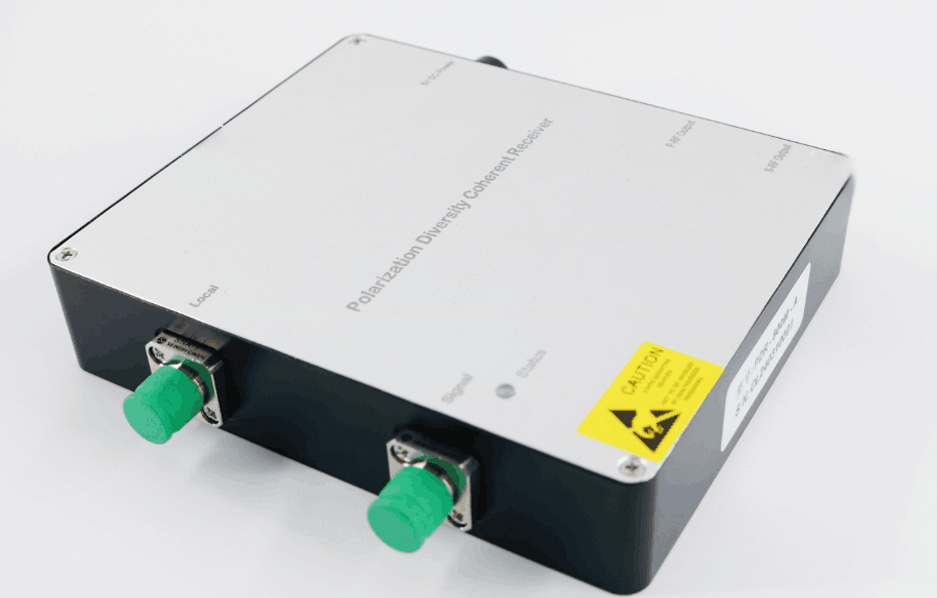

Polarization diversity coherent receiver module (InGaAs balanced detector 1510-1590nm bandwidth 100MHz)
Polarization diversity coherent receiver module (InGaAs balanced detector 1510-1590nm bandwidth 100MHz)
Idealphotonics PDR series polarization diversity receiving module is for polarization-sensitive fiber optic sensing applications. The polarization diversity receiving module separately coheres the two polarization states of the local oscillator light and the signal light, and uses two high-speed low-noise balanced detectors to receive them separately, which can well solve the problem of coherent polarization state and is suitable for distributed fiber optic sensing, laser wind radar, optical coherence tomography and other application fields.
Product features：High bandwidth、 High gain、 Low noise、 Built-in low noise isolated power supply
Application area：Fiber optic sensor、 Laser wind radar、 Optical coherence tomography、 Spectral measurement
Unit Price
Please contact customer service for a discounted quote.
Part Number
PDR-100M-A
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Download Document
Dimensional Drawing

Parameter

PN#

PDR-

100M-A

PDR-

200M-A

PDR-

300M-A

PDR-

400M-A

PDR-

500M-A

PDR-

800M-A

PDR- 1G-A

PDR-   1.2G-A

PDR-   1.5G-A

PDR- 2G-A

PDR-   2.5G-A

Unit

wavelength

1510~1590（1300±40nm；1060±40nm customizable）

nm

bandwidth

100M

200M

350M

400M

500M

800M

1G

1.2G

1.5G

2G

2.5G

Hz

Detector responsivity

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

0.95

A/W@1550nm

Transimpedance Gain

30K

30K

30K

10K

5K

30K

30K

30K

30K

15K

15K

V/A

Input light

Local

<5

<5

<5

<5

<5

<5

<5

<5

<5

<5

<5

mW

Signal

300

300

300

300

300

300

300

300

300

300

300

μW

Polarization extinction ratio

22

22

22

22

22

22

22

22

22

22

22

dB

NEP

5

5

5

7

7

9

9

9

9

9

9

pW/Sqrt(Hz)

Supply voltage

5

5

5

5

5

12

12

12

12

12

12

V

Supply current

0.4(max)

0.4(max)

0.4(max)

0.4(max)

0.4(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

0.3(max)

A

Output coupling mode

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC


Connector type

Electrical connector：SMA

Fiber connector：FC/APC


Fiber type

Local: PM ; Signal: SM


RF Output

SMA


Dimension

120*100*25mm（90*80*20mm can be choose）





Related test data

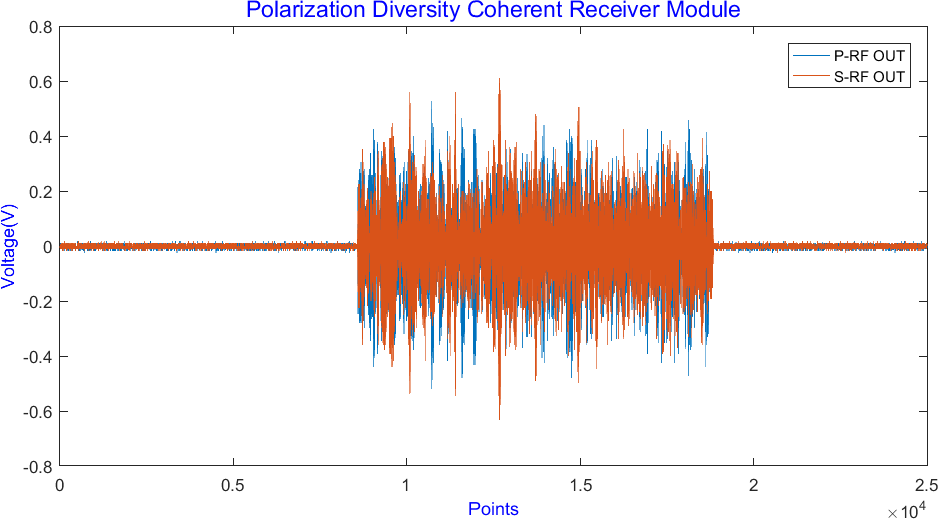

 P polarization and S polarization coherent signals

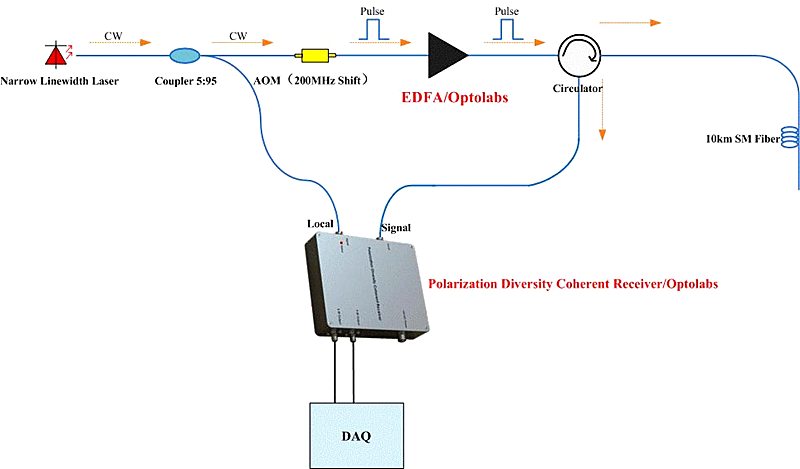

 Polarization diversity coherent receiving optical path diagram
