400-1100nm 四象限Si光电探测器(N型硅象限探测器光敏面直径16mm 直流响应度0.3A/W)

The device is an N-type silicon quadrant detector. When the radiation flux of light radiating to each quadrant of the device is equal, the photocurrent output of each quadrant is equal. When the target is offset, the change of radiation flux between quadrants causes the change of output photocurrent of each quadrant, thereby measuring the direction of the object, thus playing the role of tracking and guiding.

产品特点：Low dark current、 High uniformity and symmetry、 High reliability、 Small blind spot

应用领域：Laser aiming, guidance, tracking and exploration device、 Precision measurement system such as laser micro-positioning and displacement monitoring

单价

请咨询客服获得优惠报价。

产品型号

SIQ1600

货期

请咨询客服获得货期。

库存

请咨询客服。

联系我们

加入询价

主要参数

可选配置表

核心参数

尺寸图

Parameter

Parameter	Symbol	Test condition		Value			Unit
Parameter	Symbol	(Unless otherwise specified, T_A = 22°C ± 3°C)		Min.	Typical	Max.	Unit
Responsivity (AC) (quadrant)	S_pi	λ=1.064μm	Pulse width 20 ns、P_in=2 mW	0.25	-	-	A/W
Responsivity (DC) (quadrant)	R_ei		DC、P_in=1μw	0.3	-	-	A/W
Responsivity (AC) (quadrant)a	ΔR_ei	V_R=135 V	T_A=-45 ℃±2 ℃	-	-	50	%
Responsivity (DC) (quadrant)a	ΔR_ei		T_A=-45 ℃±2 ℃	-	-	50	%
Dark current (quadrant)	I_Di	V_R=135V	TA=22℃±3℃	-	-	1	μA
Dark current (quadrant)	I_Di		T_A=70℃±3℃	-	-	10
Dark current (ring)	I_D	P_in=0μw	T_A=22℃±3℃	-	-	10
Dark current (ring)	I_D		T_A=70℃±3℃	-	-	100
Junction capacitance (quadrant)	C_ji	V_R=135V，f=1MHz		-	-	15	pF
Active area	φ			10	-	16	mm
Equivalent noise power	NEP_i	λ=1.064 μm，V_R=135 V ,pulse width 20 ns		-	-	5×10^-12	W/HZ^1/2
Breakdown voltage (quadrant, ring)	V _BR	I_R=10μA		200	-	-	V
Inter-pixel sensitivity non-uniformity	R_f	λ=1.064 μm，V_R=135 V, pulse width 20 ns；P_in=2mW		-	-	5	%
Intra-pixel sensitivity non-uniformity	R_{f n}	λ=1.064 μm，V_R=135 V, pulse width 20 ns；P_in=2mW		-	-	5	%
Inter-pixel crosstalk factor	S_Li	λ=1.064 μm，V_R=135 V, pulse width 20 ns；P_in=2mW		-	-	5	%
element gap	-	-		-	0.2	-	mm

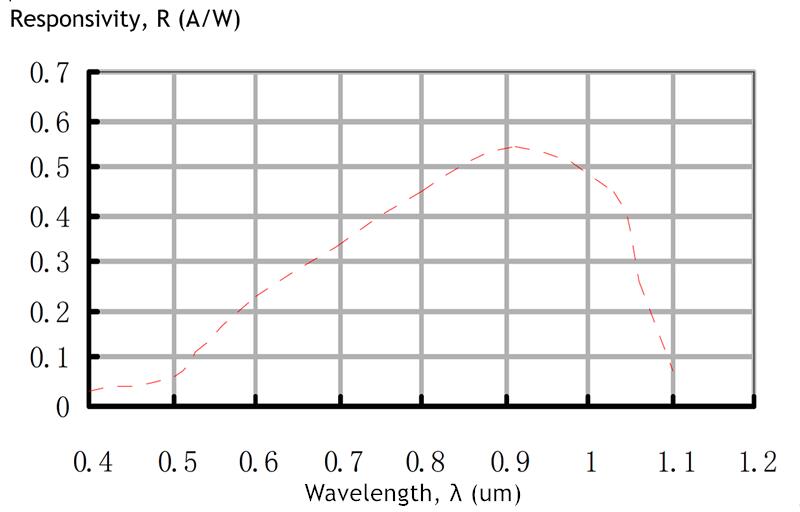

Spectrum responsivity curve

Appearance and structure

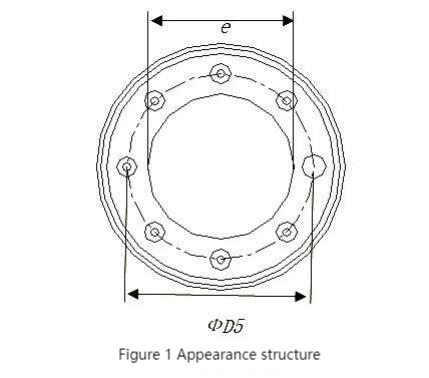

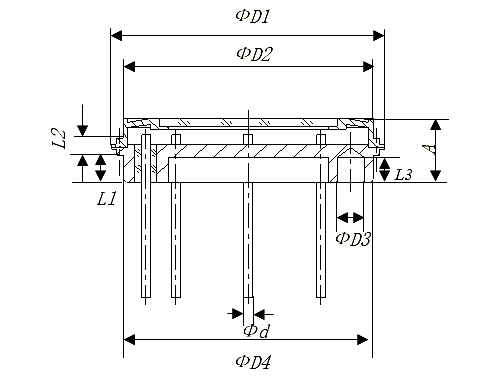

TO type airtight package. The appearance and structure are shown in Figure 1, and the dimensions are shown in Table 1.

Table 1 appearance dimension (unit mm)

Dimension symbol	φ D₁	Φ D₂	Φ D₃	Φ D₄	Φ D₅	Φ d	A	L1	L2	L3	e
Min.	30. 55	27. 80	3. 00	27. 915	22. 60	0. 98	7. 03	3. 02	1. 85	2. 70	18. 00
Max.	30. 65	28. 00	3. 06	27. 94	23. 40	1. 02	7. 20	3. 10	1. 95	3. 00	18. 05

Pin arrangement

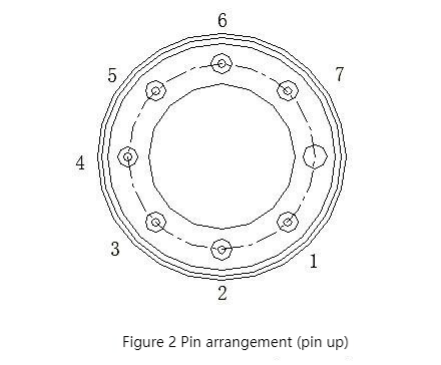

The pin arrangement of the device is shown in Figure 2. The pin functions should comply with the requirements of Table 2.


Table 2 Pin Function Table

Pin	Function	Voltage polarity
1	Quadrant 1	Positive
2	Public P level	Negative
3	Quadrant 4	Positive
4	Ring level	Positive
5	Quadrant 3	Positive
6	Case	Ground
7	Quadrant 2	Positive
